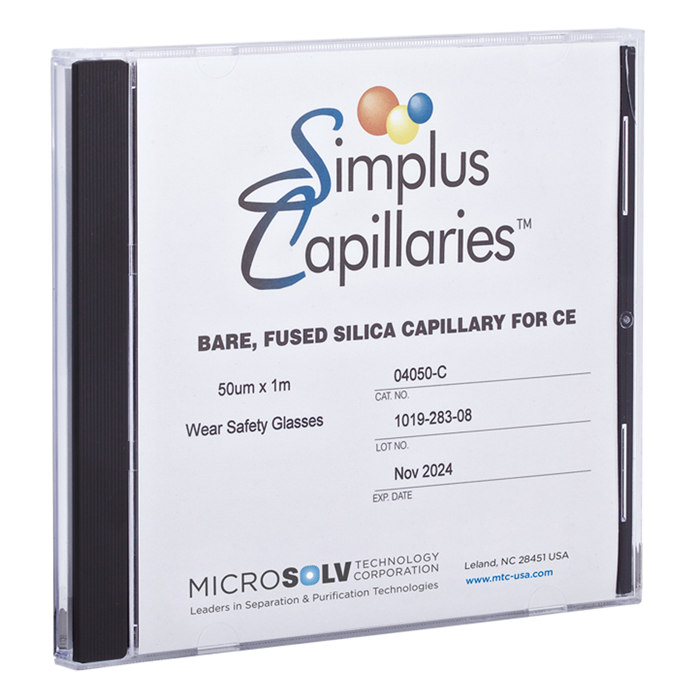

Catalog Number - 04050-C

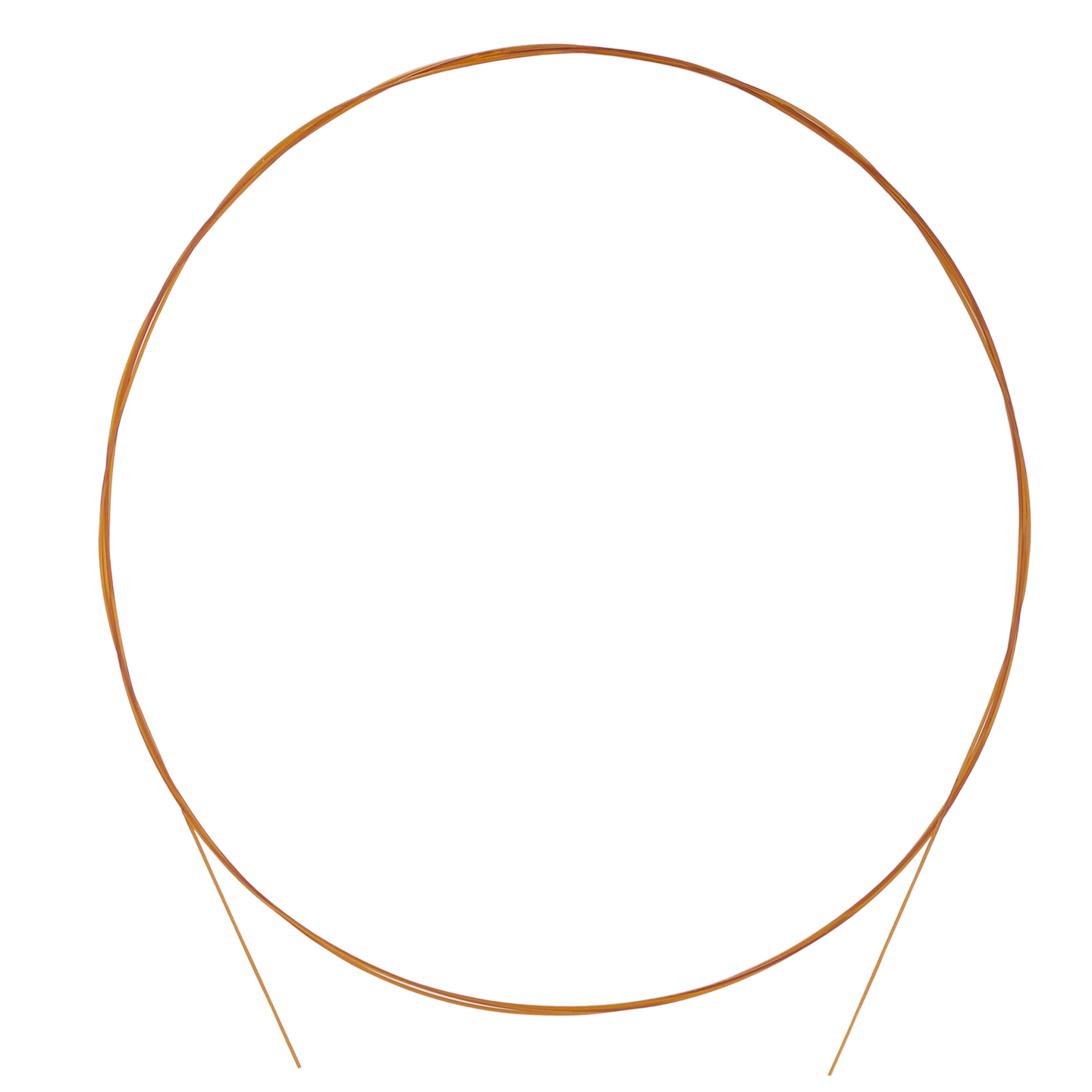

The 04050-C Simplus Capillary is an untreated fused silica capillary designed for capillary electrophoresis (CE), providing natural electro‑osmotic flow (EOF) and consistent separation behavior.

Manufactured with extreme precision and excellent concentricity לאורך the full length, this capillary ensures uniform performance and reproducibility. The polyimide outer coating provides durability and flexibility, making it well suited for routine CE workflows and method development.

Key Features

Bare Fused Silica Surface

• Untreated inner wall provides standard EOF behavior

• Ideal for routine separations and established methods

High Precision Manufacturing

• Excellent concentricity לאורך the entire capillary length

• Supports consistent flow and reproducible results

Fused Silica with Polyimide Coating

• Durable, flexible polyimide outer layer

• Protects capillary during handling and operation

Standard Electro‑Osmotic Flow (EOF)

• Enables typical CE migration and separation profiles

• Compatible with a wide range of methods

Balanced Diameter for Performance

• 50 µm ID offers

  • Good sample capacity

  • Efficient separations for general CE applications

Precision Dimensions

• Inner Diameter (ID): 50 µm

• Outer Diameter (OD): 365 µm

• Standard format for broad CE instrument compatibility

Specifications

• Type: Bare Fused Silica Capillary for CE

• Inner Diameter (ID): 50 µm

• Outer Diameter (OD): 365 µm

• Length: 1 meter

• Coating (Inner): None (bare fused silica)

• Coating (Outer): Polyimide

• Material: Fused silica

• Flow Characteristic: Standard electro‑osmotic flow (EOF)

• Country of Origin: USA

Available Length Options

✅ Also available in extended configurations:

• 10‑Meter Length Option for 04050-C Bare Fused Silica CE Capillary (Simplus Brand)

• 25‑Meter Length Option for 04050-C Bare Fused Silica CE Capillary (Simplus Brand)

Typical Applications

Capillary electrophoresis (CE), routine separations, method development, pharmaceutical and environmental analysis, and applications requiring standard EOF behavior with balanced performance
